Definition

The Bent geometry, is a type of atomic arrangement in molecules resulting from an sp3-hybridized atom that has two lone pairs.

Bent Explanation:

When we hear the word geometry, it should be clear to us that geometry refers to the arrangement of atoms in a molecule and does not refer to the arrangement of electron pairs.

In the context of an sp3-hybridized atom, the arrangement of electrons is almost always tetrahedral because of the presence of 4 sp3-hybridized orbitals (steric number 4). However, the arrangement of atoms, depending upon the number of lone pair electrons, can be a Tetrahedral (eg: CH4, no lone pairs), Trigonal Pyramidal (eg: NH2, one lone pair) or a Bent geometry (eg: H2O, two lone pairs)

Example – Water Molecule

Structural reaction scheme for Bent, diagram 1 of 2
Figure 1. Bent

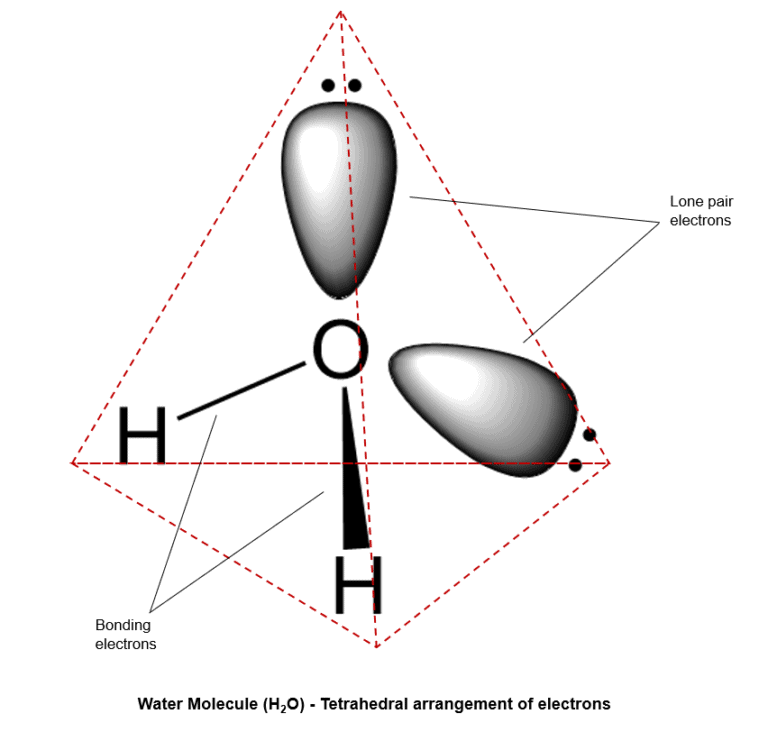

Structural reaction scheme for Bent, diagram 2 of 2
Figure 2. Bent
