Definition

Treatment of an aromatic (such as benzene) with chlorine (Cl2) and a Lewis base such as AlCl3 or FeCl3 leads to the formation of the chlorinated aromatic by electrophilic aromatic substitution.

Structural reaction scheme for Chlorination [Cl2 plus catalyst], diagram 1 of 3
Figure 1. Chlorination [Cl2 plus catalyst]

Explanation

This reaction is similar to catalytic aromatic bromination. Benzene does undergo electrophilic aromatic substitution with chlorine and aluminum chloride as a catalyst to produce chlorobenzene.

Chlorine reacts with AlCl3 to form a complex in which imparting electrophilic character to the chlorine atom [1]. This electrophilic chlorine atom reacts in the next step [2], the nucleophilic attack of benzene. Sigma complex, or arenium ion, is also formed. The reaction ends [3] by deprotonation of sigma complex and, thereby, restoring aromaticity and regenerating the Lewis acid (AlCl3).

Activation of chlorine by the Lewis acid AlCl3

Structural reaction scheme for Chlorination [Cl2 plus catalyst], diagram 2 of 3
Figure 2. Chlorination [Cl2 plus catalyst]

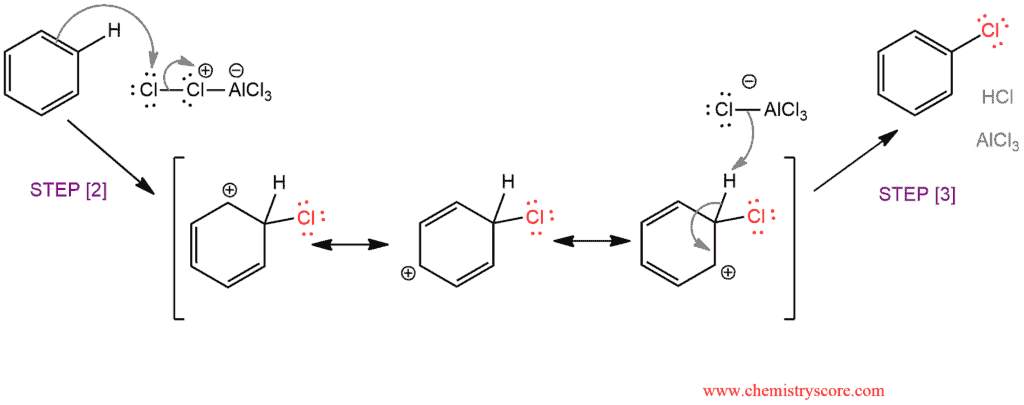

Electrophilic attack on Benzene by Activated Chlorine and Chlorobenzene formation

Structural reaction scheme for Chlorination [Cl2 plus catalyst], diagram 3 of 3
Figure 3. Chlorination [Cl2 plus catalyst]
